Sampling of Duct Layout Sketches

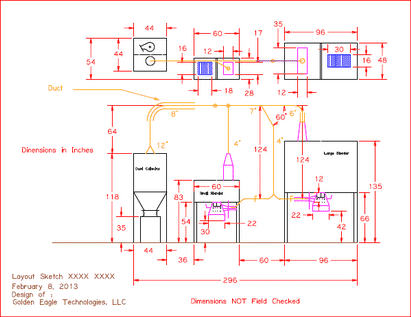

Cartridge Collector Venting two Dry Chemical Ribbon Blenders
Venting of two Ribbon Blenders. Duct runs to both; Mixer top covers, and to dust collection hoods around material discharge slide gates. Top covers of mixers have bar grating for bag dump and as an air inlet to keep dust flow awa from workers. Dust Collector includes a horizontial fan mounted atop the Dust Collector.

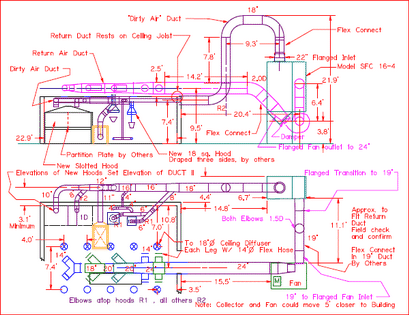

Copper Mine Assay Lab - Seven Pick Up Pointss
Copper Mine Ore Assay Lab. Nano-Fiber Cartridge Collector Filtered Air is recirculated back into work space. Seven pick up points including: Lab Pulverizers, Downdraft Work Bench, and Back Wall Slotted Hood Work Bench.

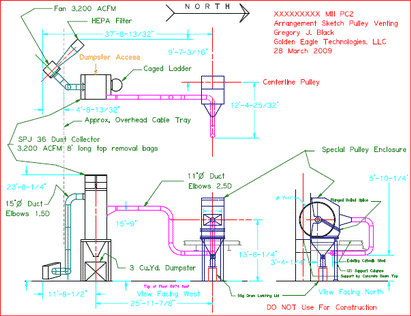

7 Foot Diameter Belt Conveyor Tail Pulley Enclosure to Bag House Dust Collector
Custom Enclosure around seven foot diameter Tail Pulley on ore belt conveyor. System includes: Enclosure, Dust Collector, Fan HEPA Filters and Duct.

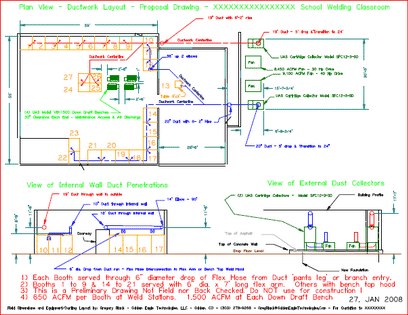

Welding School Booth Venting
Plan View of Existing Welding School. Showing General Arrangement of Duct System and Cartridge Dust Collector Placement. ( Sections and Details Not Shown )
The below sketches, were designed for our clients to fabricate themselves, or at a local fabrication facility. Click on the picture to open the PDF File.

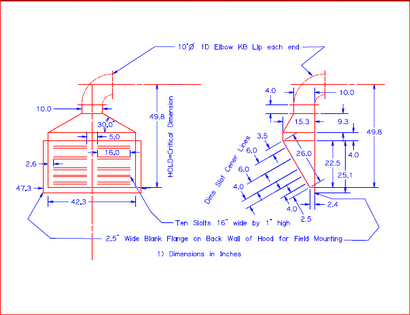

Slotted Hood Retrofit Modification for Existing Bench Top

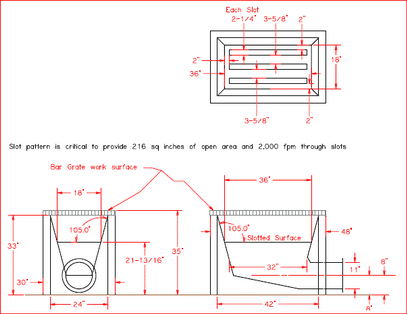

Downdraft Bench, with slotted diffuser for more even air distribution. Applied for temporary placement of sample containers filled with ground ore.

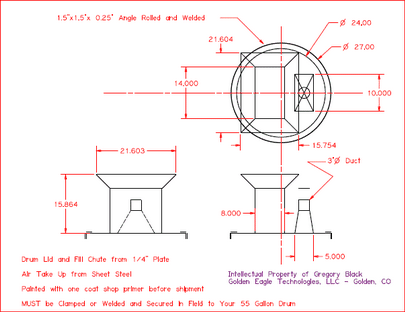

Barrell filling lid, for placement on 55 gallon drum
Our services may entail general layout sketches of your duct system indicating; pick up hood type / design , duct diameters , and approximate routing. We are not offering Engineering services, but more economical Designer services, for fitting duct and preliminary sizing of air pollution control equipment to manufacturers recommended air to cloth ratios.
Final Engineering acceptance and implementation details are the responsibility of our clients.
